Status:
USED-A
Quantity:
1
Unit Type:
Compressor
Province:
Alberta
City/Location:
Stettler

   Unit Summary



Compressor:

Gardner Denver SSM (206mm)

Driver:

Caterpillar 3304 NA

Suction Scrubber Vessel:

18” OD integrated horizontal vessel (c/w filter)

Blowcase Vessel:

Optional

Lube Oil (coalescing) Vessel:

18” OD x 101” s/s Horizontal Lube Oil Separator

EJW Cooler:

Global Heat Transfer GHT 23001

Compressor Lube Oil Cooler:

Brazed aluminum bar & plate cooler EHRIS

Compressed Natural Gas Cooler:

Brazed aluminum bar & plate cooler EHRIS

Driver Silencer:

4” Hospital Grade Plus exhaust

Suction Controls:

2” V200 V-ball control valve

Control Panel:

Altronic class I zone II

Packaging & Enclosure:

Trailer mounted; fully insulated building 8’ (W) x 8’6” (H) x 15’ (L)



c/w two doors and one window.

Sour Specification

1/8” corrosion allowance, 100% X-Ray on all welded process piping



and vessels. Process pipe welding completed with a registered weld procedure with documented hardness below 200HBN, therefore PWHT

not included.

Commisioning / Start Up:

Complete start up and commissioning services by highly trained and experienced Vortex field personnel.

(not included in scope of supply price)

Operating parameters:

0 to 50 psig inlet



300 psig discharge



Please note: 350 psig discharge option available upon request.




 Skid EdgeConnections:





Inlet:



4” 300 ANSI

Discharge:

2” 300 ANSI

Vent:

Blowdown header 2” NPT

Fuel / Start Gas:

1 ½” NPT Auxiliary fuel/ start gas

Liquid Drain:

1” NPT Liquid drain

Oil Drain:

1” NPT Engine oil drain

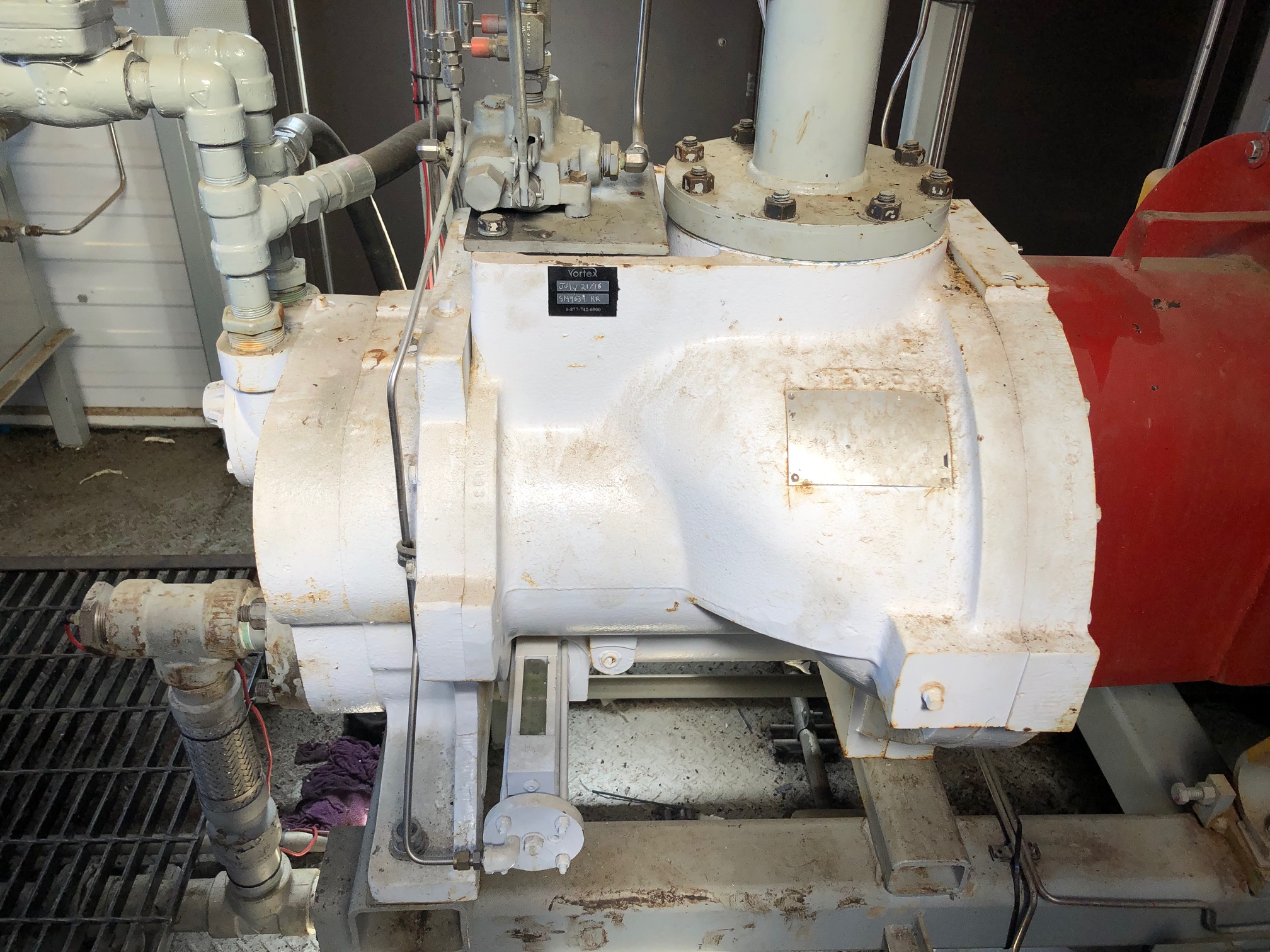

 Rotary Screw Compressor:



Screw:



Gardner Denver SSM (206mm) gas screw compressor

Suction:

·   Maximum 50 psig

Discharge:

·   Maximum 350 psig



·   Cast iron housing



·   Nodular iron rotors



·   Turn valve capacity controller



·                Load/Unload single lever detent control valve



·   Fixed Vi (3.0)



·   3” 300 ANSI cone strainer



·                40 type mesh



·                150% open area



·   3” 300 ANSI full flow inlet check valve



·   3” x 12” s/s flex joint

Filtration:

·        Donaldson dual oil filters



·        DPI gauge c/w shutdown



* Bearings: Cylindrical Roller bearings at the inlet end. Time proven tapered roller bearings at the discharge end. These bearings have reduced friction providing lower rotation speeds and longer life



** Rotors have asymmetrical "Kypho" profiles for maximum efficiency over their entire operating range delivering an increase of 3 to 5 % operating efficiency. This improved profile also provides tighter seals which reduce slippage and eliminate vibration. The larger rotor diameters also provide more compression per RPM, reduced

compressor heat and overall lower operating costs.

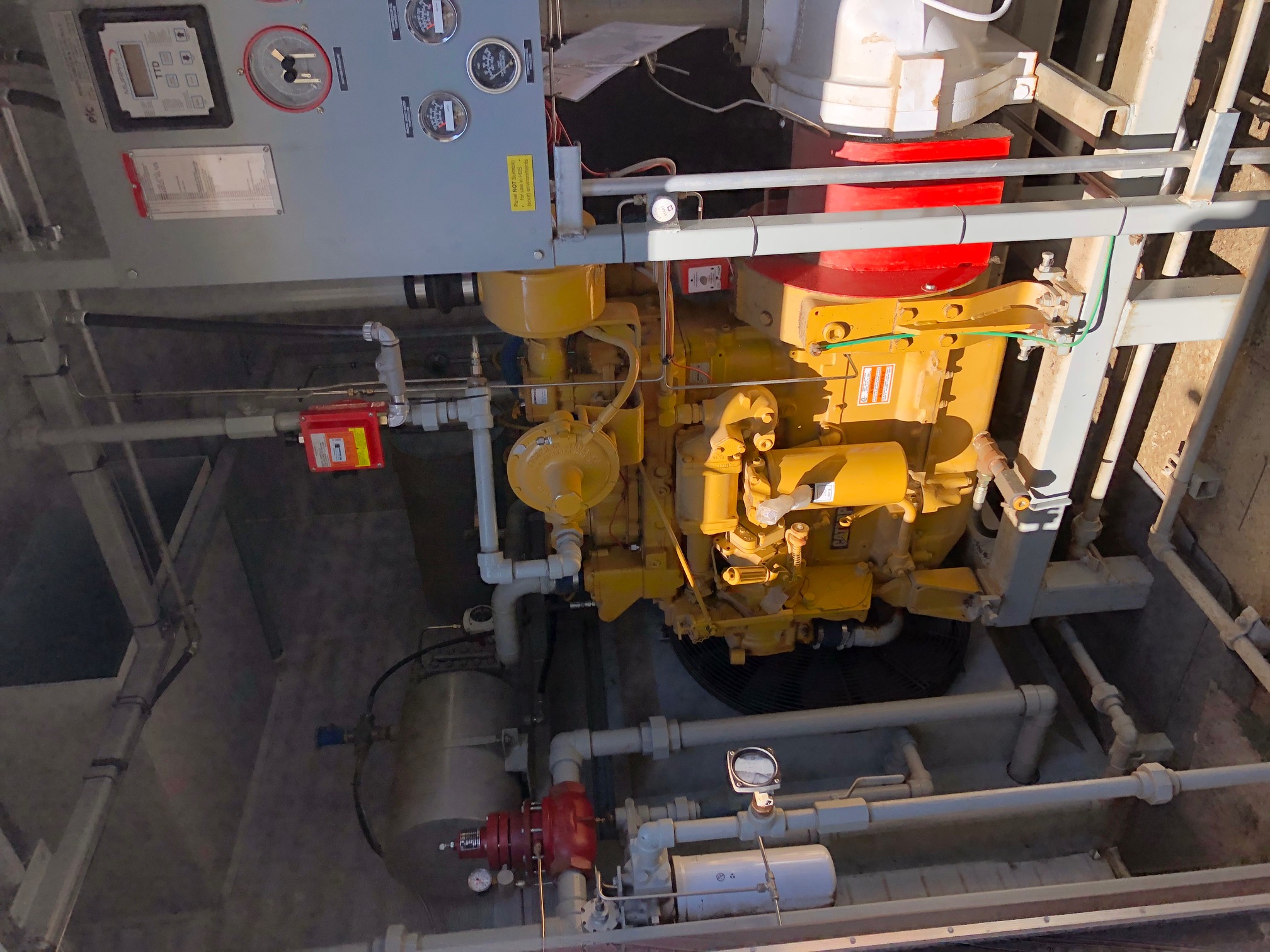

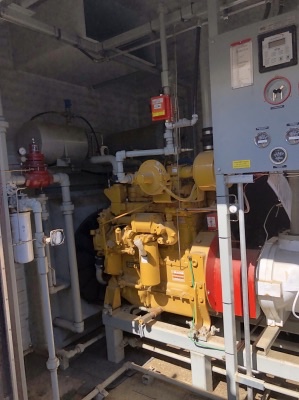

 Compressor Driver, Natural Gas:



Driver:



·        Caterpillar 3304 NA

Power:

·        95 HP (71 KW)

Cylinders:

·        Four cylinder, In-line

Bore & Stroke

·        121mm Bore, 152mm Stroke



·        Altronic III (Class 1, Zone 2) Magneto ignition



·        Crankcase E-vac system



·        Murphy (VS-2) high vibration switch

Shutdown Switches:

·        Kenco auto oil level controller c/w shutdown



·        Murphy low engine coolant level switch



·        High Engine RPM/Engine overspeed switch



·        High EJW Temperature



·        Low engine oil pressure switch, (20 psi dropping)



·        15 Gallon engine oil day tank



·                 Sight glass



·        Manifold vacuum gauge shutdown

Gas Starter:

For all purchase inquiries, please contact us via email at liquidations@energyauctions.ca or telephone at (403) 815-2016

  • 5% GST (Goods & Service Tax) where applicable on all sales will be applied.
  • International tax exemption rules will apply.
  • Buyer will receive an invoice immediately following confirmation, wiring instructions for payment will accompany.
  • All purchases will be Exworks from location, nothing will be released until payment in full is received and cleared ENERGY AUCTIONS IN TRUST.
  • All sales will be handled in Canadian Funds.
  • All items are sold "as is, where is" unless otherwise stated in "details description".
  • It is strongly recommended that buyer's preview items before purchasing.
  • 1% Administrative Fee will be added to all purchases
