Status:
USED-C
Quantity:
1
Unit Type:
Line Heater
Province:
Alberta
City/Location:
Lloydminster

SHIPPING DIMENSIONS LENGTH: 47'-0" (15545mm] WIDTH:

13'-6" [4115mm] HEIGHT: 12'-0 1/4" (3664mm]

OPERATING DIMENSIONS 47'-0" (15545mm] 14'-2 1/8" (4321mm] 12'-0 1/4" (3664mm]

WEIGHT: (DRY) 55,255 lb. [25,065 kg.]

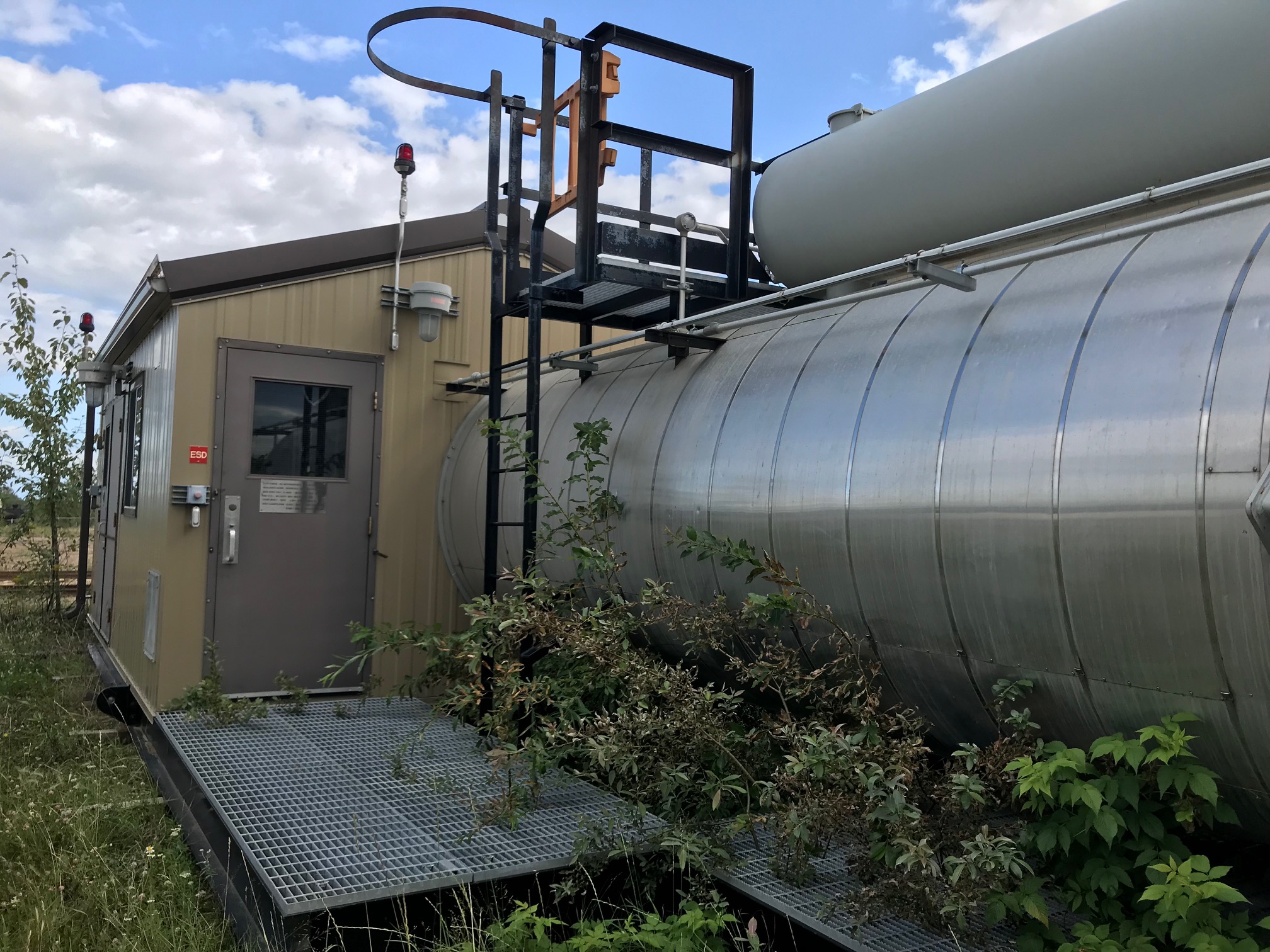

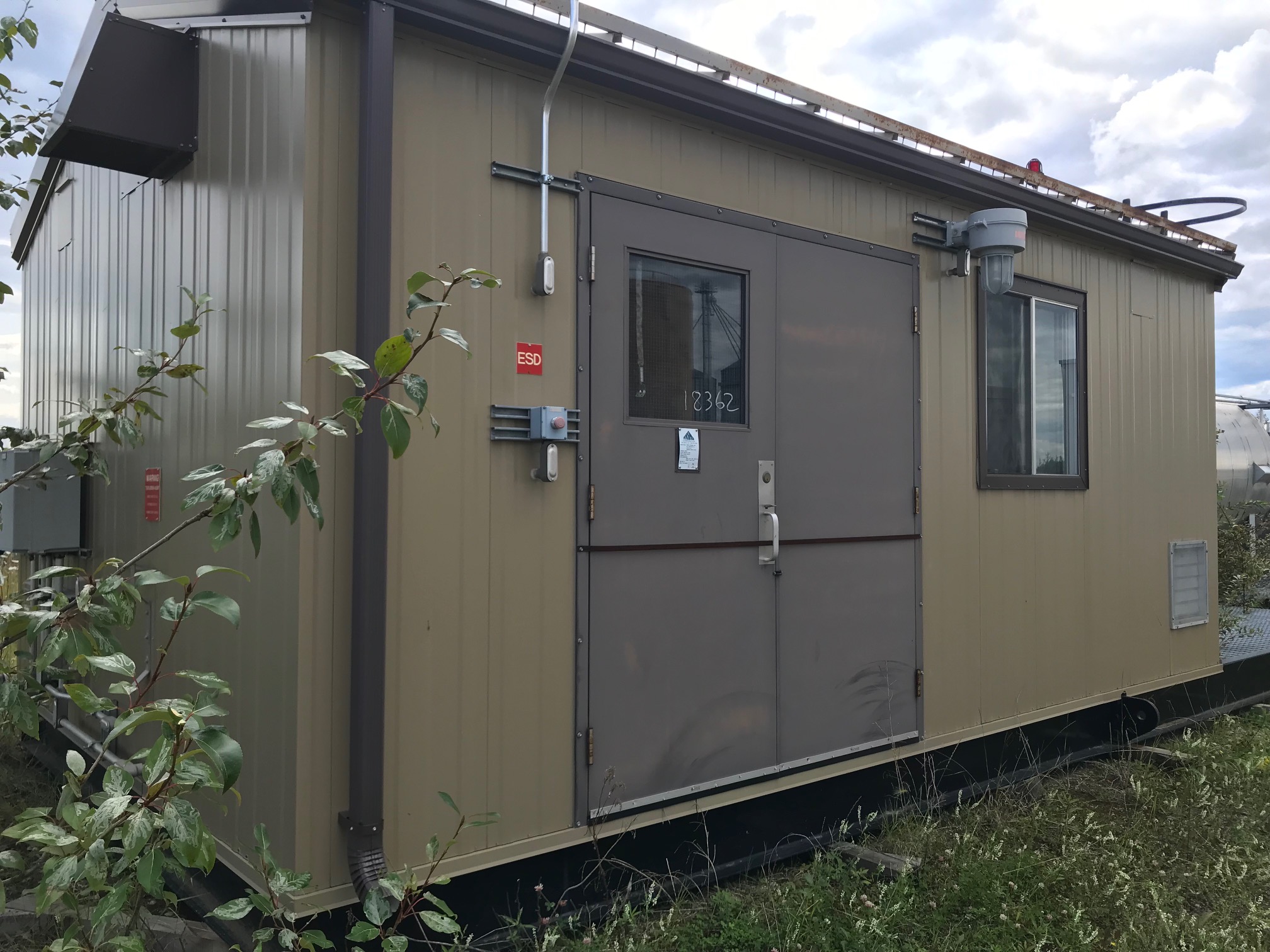

BUILDING NOTES: 1. BUILDING STYLE: SELF FRAMING METAL BUILDING 2. BUILDING DIMENSIONS: 13'--' WIDE x 20'-O' LONG 8'-6" LOW_EAVE

(EXTERIOR WALL DIMENSIONS)

GABLE STYLE ROOF WITH A 4:12 SLOPE *EXTERIOR: PRE-PAINTED EXTERIOR WALLS. ROOF AND TRIM

R-12 FIBRE GLASS BATT INSULATION IN THE WALLS AND R-20 IN ROOF WITH A 6-MIL VAPOUR BARRIER EAVES TROUGH, DOWN SPOUTS AND ICE RAKES CONTINUOUS

ON BOTH EAAVES *INTERIOR: 24 GAUGE WHITE ALUMINIUM LINER *DOORS: ONE (1) 3'-0" x 7'-0" STEEL MAN DOOR c/w FRAMES, LOCKING

PANIC HARDWARE, 24"x24" WIRE GLAZED WINDOW, STEEL THRESHOLDS, CHECK CHAIN, CANOPY & WEATHER STRIPPING ONE (1) 6'-0" x 7'-0" STEEL MAN DOOR c/w FRAMES, LOCKING PANIC HARDWARE, 24"x24" WIRE GLAZED WINDOW (IN ACTIVE LEAF ONLY).

STEEL THRESHOLDS, CHECK CHAIN, CANOPY & WEATHER STRIPPING *WINDOWS: TWO (2)_40"x40" SLIDING WINDOWS w/ HALF SCREENS *VENTILATION: ACTIVE RIDGE VENT WITH A 6" THROAT & MANUAL CHAIN OPERATOR

FOUR (4) 12"x24” MANUALLY ADJUSTABLE LOUVERS c/w BIRD SCREEN AND SLIDE GATES (WALL CLIPS FOR HIGH MOUNTED INCLUDED) ONE (1) 12" EXPLOSION PROOF EXHAUST FAN, c/w 120V, 3Ph, 60 Hz MOTOR, c/w BACK GUARD AND SHUTTER

GENERAL NOTES: 1. ALL DIMENSIONS ARE IN IMPERIAL & [SI] UNITS. 2. CUSTOMER TIE-IN POINTS DESIGNATED AS SUCH: 3. PIPING DESIGN TEMPERATURES:

-20F INSIDE BUILDING

-49*F OUTSIDE BUILDING 4. BUILDING STRUCTURE TO BE ERECTED IN SHOP. 5. ELEVATIONS SHOWN ARE FROM TOP OF CHECKER PLATE. 6. TUBING:

PROCESS LINES: 1/2" OD 0.049" WALL SEAMLESS

ASTM A269 TP304SS w

316SS SWAGELOK FITTINGS. INSTRUMENT LINES: 3/8" OD 0.035" WALL SEAMLESS

ASTM A269 TP304SS w

316 SS SWAGELOK FITTINGS.


**FINANCING AVAILABLE**

Please email Cody@energyauctions.ca for viewing availability, price and finance options

For all purchase inquiries, please contact us via email at liquidations@energyauctions.ca or telephone at (403) 815-2016

  • 5% GST (Goods & Service Tax) where applicable on all sales will be applied.
  • International tax exemption rules will apply.
  • Buyer will receive an invoice immediately following confirmation, wiring instructions for payment will accompany.
  • All purchases will be Exworks from location, nothing will be released until payment in full is received and cleared ENERGY AUCTIONS IN TRUST.
  • All sales will be handled in Canadian Funds.
  • All items are sold "as is, where is" unless otherwise stated in "details description".
  • It is strongly recommended that buyer's preview items before purchasing.
  • 1% Administrative Fee will be added to all purchases
